TFXtreme 3300/33C Type Universal Control Cable

In Stock

$43.49

In Stock
Have a Question? Ask a Specialist

(+800) 1234 5678 90 Start Live Chat

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Category:

Description

Teleflex Xtreme 3300/33C Type Universal Control Cable

Teleflex’s 3300 Universal Control Cables are high-quality, universal-type cables that are designed to fit aftermarket engine controls as well as OEM units from BMW, Chrysler, Honda, Nissan, Suzuki, Volvo, Yamaha, and other manufacturers.

With its unique splined core, TFXtreme delivers unparalleled smoothness and efficiency and features minimal lost motion even with long and/or complex cable routings. This feature offers a superior feel at the control, and performance that until now was considered ‘impossible”.

For Yamaha, Honda, Nissan, Suzuki, Tohatsu and other controls and engines with 10-32 threaded connection on both ends.

Features:

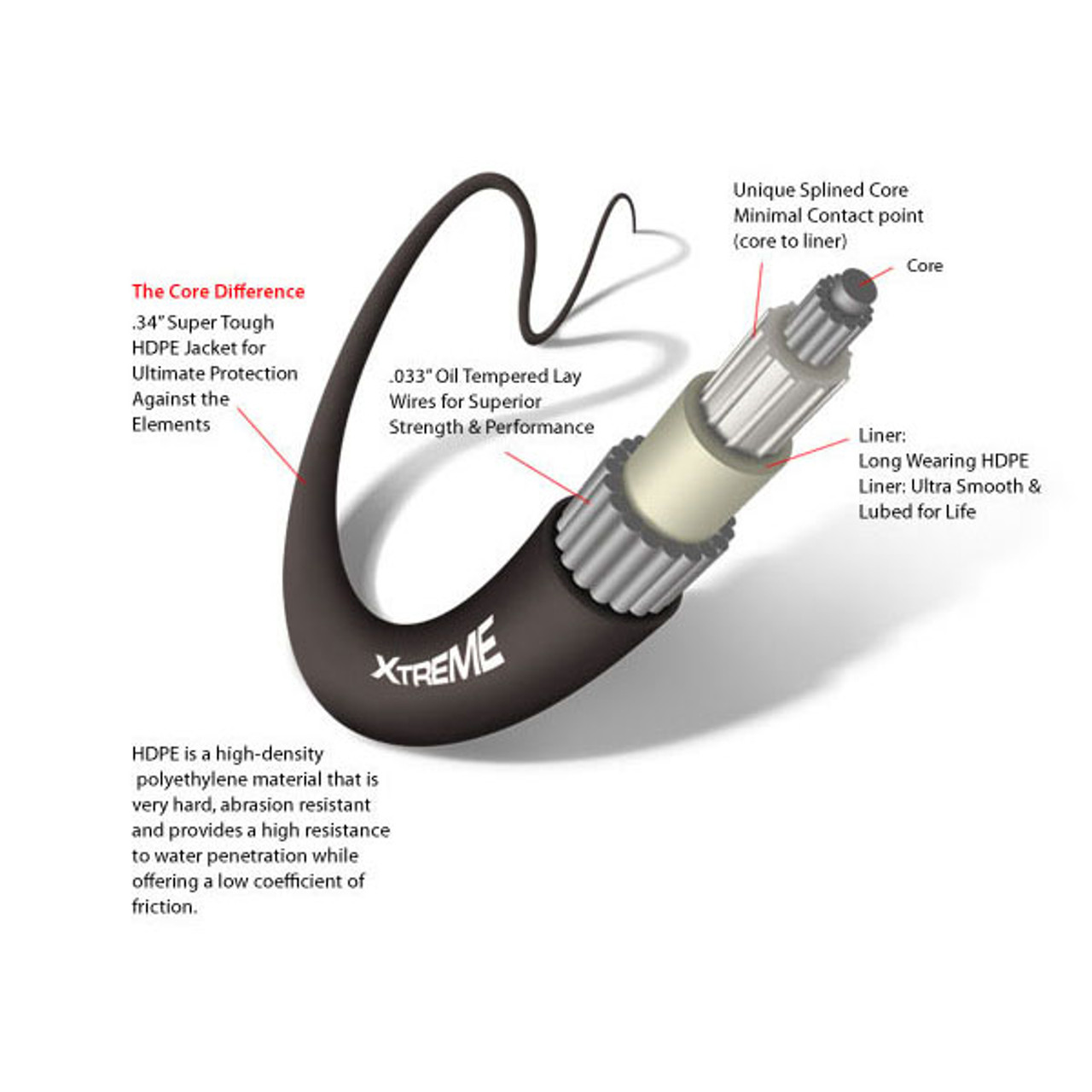

  • TFXtreme control cables’ patent-pending splined core allows easy movement and decreased lost motion
  • Fittings are stainless steel and brass
  • Designed for a smoother performance and for complex and/or long cable runs
  • Available in several style options avoiding the need for expensive adaptor kits
  • SeaStar cables exceed ABYC safety standards & are type certified to ISO/IMCI and NMMA requirements
  • 4″ Minimum bend radius
  • 10/32 threaded ends
  • Made in the U.S.A.

OEM Cross-Reference:

  Teleflex Part Number   Johnson/Evinrude Part Number
  CCX63320   0776830
  CCX63322   0776831
  CCX63324   0776832
  CCX63326   0776833
  CCX63328   0776834
  CCX63330   0776835
  CCX63332   0776836
  CCX63334   0776837
  CCX63336   0776838
  CCX63338   0776839
  CCX63340   0776840

How to Order a TFXtreme 3300/33C Control Cable – Measure Twice, Order Once

For a New Installation: Measure cable routing path from control head attachment point to engine connection as follows:

Outboards

  • Measure from control along unobstructed cable routing to center of outboard.
  • Add four feet to allow for loop, which provides unrestricted engine movement.
  • Round up to the next foot and order required cable.

Inboards & Sterndrives

  • Measure from control along unobstructed cable routing to shift and/or throttle connection.
  • Round this dimension up to the next foot and order required cable part.

For Replacement of Existing Cable: If you removed the old cable, measure for replacement cable as follows:

  • Measure from tip to tip and round up to the next foot if necessary (aftermarket cables are sold in foot increments up to 30 feet; after that, they are only sold in even foot increments).
  • The control cable part number contains its lengths. For example, SeaStar Solutions cables are usually listed as CCXX, where XX=length in feet.

Reviews

There are no reviews yet.

Be the first to review “TFXtreme 3300/33C Type Universal Control Cable”

Your email address will not be published. Required fields are marked *

Quick Comparison

SettingsTFXtreme 3300/33C Type Universal Control Cable removeTeleflex CCX643 Control Cable Assembly TFXtreme 6400 Series removeTeleflex CC230 Universal Standard Control Cable removeMercruiser 66069A-2 Core Wire removeTeleflex CCX179 TFXtreme Control Cable Mercury removeTeleflex CC332 Midrange Universal Control Cable remove
NameTFXtreme 3300/33C Type Universal Control Cable removeTeleflex CCX643 Control Cable Assembly TFXtreme 6400 Series removeTeleflex CC230 Universal Standard Control Cable removeMercruiser 66069A-2 Core Wire removeTeleflex CCX179 TFXtreme Control Cable Mercury removeTeleflex CC332 Midrange Universal Control Cable remove
SKU
Rating
Price$43.49$152.49$45.00$35.00$54.99$43.49
Stock
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
AvailabilityIn StockIn StockIn StockIn StockIn StockIn Stock
Add to cart

Add to cart

Add to cart

Add to cart

Add to cart

Add to cart

Add to cart

Description
Content

Teleflex Xtreme 3300/33C Type Universal Control Cable

Teleflex’s 3300 Universal Control Cables are high-quality, universal-type cables that are designed to fit aftermarket engine controls as well as OEM units from BMW, Chrysler, Honda, Nissan, Suzuki, Volvo, Yamaha, and other manufacturers. With its unique splined core, TFXtreme delivers unparalleled smoothness and efficiency and features minimal lost motion even with long and/or complex cable routings. This feature offers a superior feel at the control, and performance that until now was considered ‘impossible”. For Yamaha, Honda, Nissan, Suzuki, Tohatsu and other controls and engines with 10-32 threaded connection on both ends. Features:
  • TFXtreme control cables’ patent-pending splined core allows easy movement and decreased lost motion
  • Fittings are stainless steel and brass
  • Designed for a smoother performance and for complex and/or long cable runs
  • Available in several style options avoiding the need for expensive adaptor kits
  • SeaStar cables exceed ABYC safety standards & are type certified to ISO/IMCI and NMMA requirements
  • 4" Minimum bend radius
  • 10/32 threaded ends
  • Made in the U.S.A.
OEM Cross-Reference:
  Teleflex Part Number   Johnson/Evinrude Part Number
  CCX63320   0776830
  CCX63322   0776831
  CCX63324   0776832
  CCX63326   0776833
  CCX63328   0776834
  CCX63330   0776835
  CCX63332   0776836
  CCX63334   0776837
  CCX63336   0776838
  CCX63338   0776839
  CCX63340   0776840

How to Order a TFXtreme 3300/33C Control Cable - Measure Twice, Order Once

For a New Installation: Measure cable routing path from control head attachment point to engine connection as follows: Outboards
  • Measure from control along unobstructed cable routing to center of outboard.
  • Add four feet to allow for loop, which provides unrestricted engine movement.
  • Round up to the next foot and order required cable.
Inboards & Sterndrives
  • Measure from control along unobstructed cable routing to shift and/or throttle connection.
  • Round this dimension up to the next foot and order required cable part.
For Replacement of Existing Cable: If you removed the old cable, measure for replacement cable as follows:
  • Measure from tip to tip and round up to the next foot if necessary (aftermarket cables are sold in foot increments up to 30 feet; after that, they are only sold in even foot increments).
  • The control cable part number contains its lengths. For example, SeaStar Solutions cables are usually listed as CCXX, where XX=length in feet.
Universal 6400/64 Applications Universal type cables are designed to fit aftermarket engine controls as well as OEM units from BMW®, Chrysler®, Honda®, Nissan®, Suzuki®, Volvo®, Yamaha® and others.  For heavy duty applications, Teleflex offers 4300/43 and 6400/64 series TFXTREME cables. CCX643 Cable Features:
  • 6400/64 type cables have stainless steel conduit fitting
  • 8” minimum bend radius
  • 4” nominal travel
  • Black HDPE outer casing for durability and best resistance to UV and chemicals
  • Cables meet/exceed all applicable industry standards
Teleflex CC230 Universal Standard Control Cable Universal type cables are designed to fit aftermarket engine controls as well as OEM units from BMW, Chrysler, Honda, Nissan, Suzuki, Volvo, Yamaha and others. Features:
  • Cables can use the existing connection components
  • Stainless steel fittings
  • Standard cables use stainless steel Lubri-Core™ core wire for smooth operation and long life. (8" minimum bend raduis)
  • Black HDPE outer casting for surability and best resistance to UV and chemicals

 Mercruiser 66069A-2 Core Wire

Teleflex CCX179 TFXtreme Control Cable Mercury

When looking to replace Mercury Control Cables, those that provide smooth operation without excess motion are recommended. With it’s unique splined core TFXtreme control cables deliver that effortless smoothness and efficiency - with hardly any lost motion - even in the longest and most complex cable routings. This provides a superior feel at the control and delivers unparalleled performance. Features:
  • TFXtreme’s unique design incorporates a patent-pending splined core which allows easy movement and minimum lost motion.
  • Designed for complex and/or long cable runs (or to simply create a superior feel).
  • Available in several style options avoiding the need for expensive adaptor kits.
  • 4" Minimun bend radius.
  • 10/32 threaded ends.
  • Replaces 600A type Mercury cables
Applications:
  • Mariner / Mercury / Mercruiser 1965 - date (Cannot be used with 4000 series controls. Use Gen II cables)
  • Force 1993 - date with Mercury controls.
  • Mariner engines with Mercury/Mariner controls (except pre-1993 40HP & lower models).
Teleflex CC332 Midrange Universal Control Cable Universal type cables are designed to fit aftermarket engine controls as well as OEM units from BMW, Chrysler, Honda, Nissan, Suzuki, Volvo, Yamaha and others. Features:
  • Cables can use the existing connection components
  • Stainless steel fittings
  • M idrange cables use a heavier jackey and a stainless steel Lubri-Core™. (8" minimum bend radius for Lubri-Core™ construction)
  • Red HDPE outer casting for surability and best resistance to UV and chemicals
Weight
DimensionsN/AN/AN/AN/AN/AN/A
Additional information
